■ 基本信息
別名: | pET31b |
啟動子: | T7 |
復制子: | pBR322 |
終止子: | T7 terminator |
質粒分類: | 大腸系列質粒；大腸表達質粒；pET系列質粒 |
質粒大小: | 5742bp |
質粒標簽: | C-6×His |
原核抗性: | Amp |
克隆菌株: | DH5a |
培養條件: | 37℃，有氧，LB |
表達宿主: | BL21(DE3)等大腸桿菌 |
誘導方式: | IPTG或乳糖及其類似物 |
5'測序引物: | T7：TAATACGACTCACTATAGGG |
3'測序引物
| T7-ter：TGCTAGTTATTGCTCAGCGG
|
備注: | 表達酮固醇異構酶 |
■ 質粒屬性
質粒宿主: | 大腸桿菌 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Amp |
真核抗性: |
|
熒光標記: |
|
■ 質粒簡介
pET-31b質粒是一種原核表達載體，C端含有一個6×His標簽，表達由宿主細胞提供的T7 RNA聚合酶誘導，目的基因被克隆到質粒載體上，受噬菌體強轉錄及翻譯信號控制。
pET系統是有史以來在大腸桿菌中表達重組蛋白的功能最強大的系統，也是現今原核表達方面使用最廣泛的系統。該系列質粒能很容易的通過降低誘導物的濃度來削弱蛋白表達。在非誘導條件下，可以使目的基因處于完全沉默狀態而不轉錄。
The pET-31b(+) vector is designed for cloning and high-level expression of peptide sequences fused with the 125aa ketosteroid isomerase protein (1). The unique AlwN I cloning site allows the unidirectional insertion of of tandemly repeated peptide coding regions separated by methionine codons. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circular map. The cloning/expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single-stranded DNA that corresponds to the coding strand. Therefore, single-stranded sequencing should be performed using the T7 terminator primer .
質粒只保證關鍵序列正確，不保證表達效果。

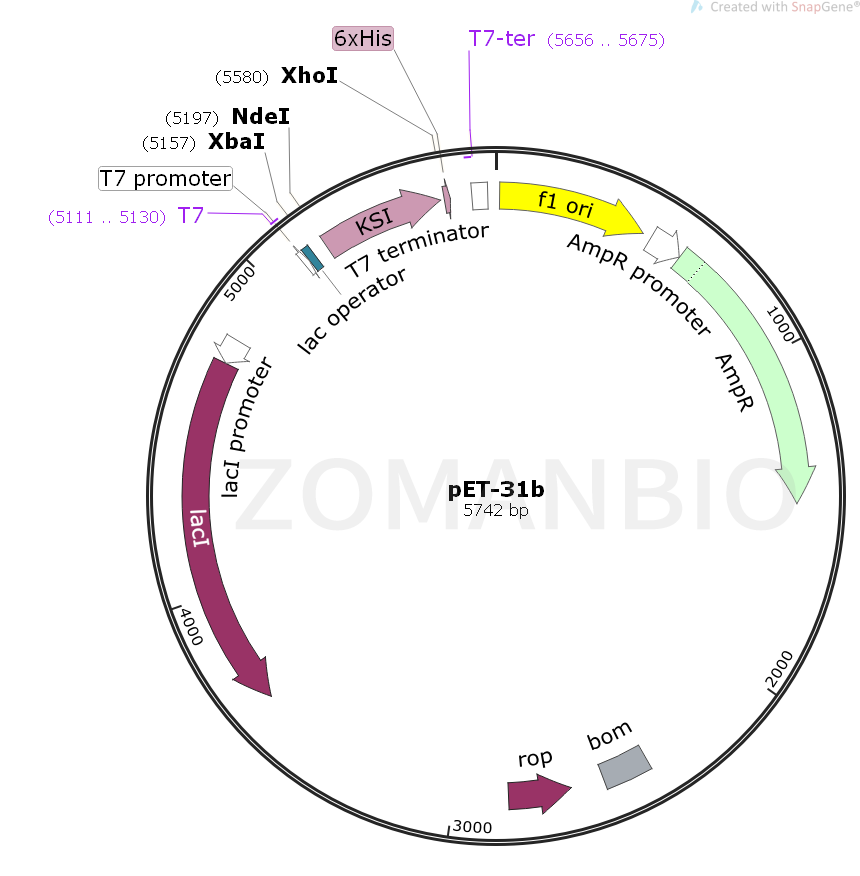

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK169pET-31b大腸表達質粒.txt
